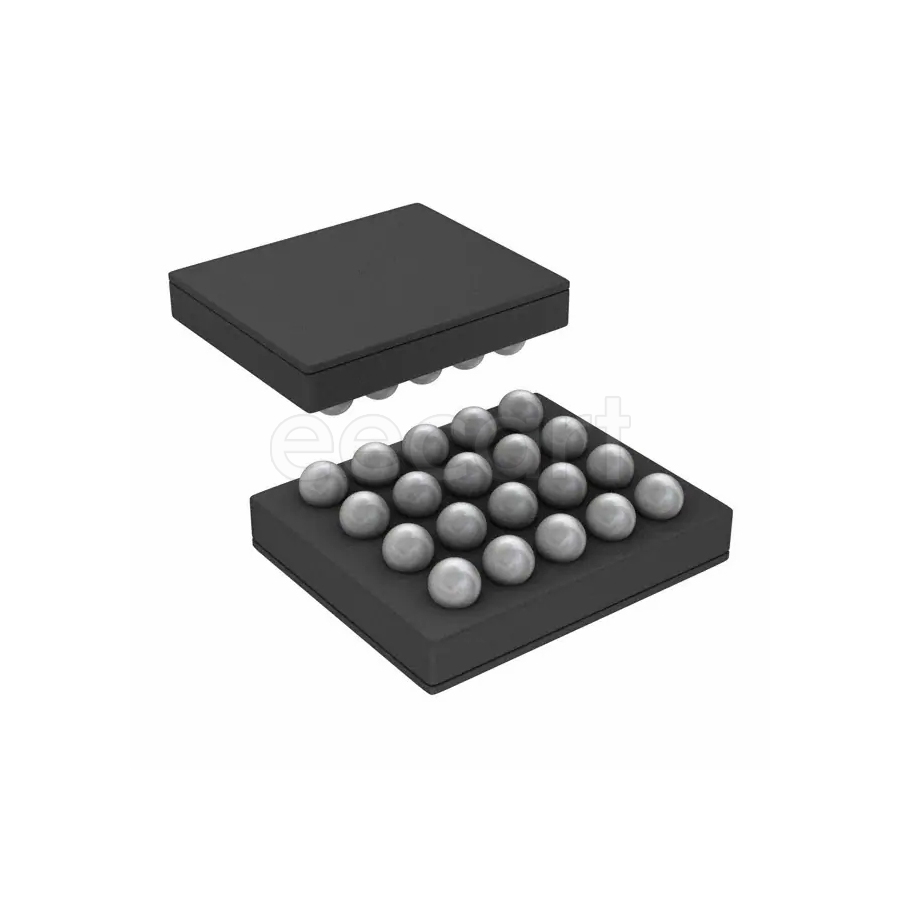

LP5521TMX/NOPB
Manufacturer:
Texas Instruments
Mfr.Part #:
LP5521TMX/NOPB
Datasheet:
Description:
LED Drivers DSBGA-20 SMD/SMT I²C
| Parameter | Value |
|---|---|
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -30 °C |
| Number of Pins | 20 |
| Height | 675 µm |
| Thickness | 420 µm |
| Radiation Hardening | No |
| Contact Plating | Copper, Silver, Tin |
| Features | I²C |
| Frequency | 1.25 MHz |
| Output Voltage | 4.55 V |
| Lifecycle Status | Active |
| Max Supply Voltage | 5.5 V |
| Min Supply Voltage | 2.7 V |
| Number of Channels | 3 |
| Quiescent Current | 1.5 mA |
| Max Supply Current | 1.5 mA |
| High Level Output Current | 25.5 mA |
| Topology | Charge Pump, Boost |
| Switching Frequency | 1.25 MHz |
| Number of Outputs | 3 |
| Nominal Supply Current | 1.5 mA |
| Number of Segments | 3 |
| RoHS | Compliant |
| Packaging | Reel |
| Dimming | I²C |
| Internal Switch | Yes |
| Type | DC DC Regulator |
Stock: 2
Distributors
pcbx
pcbxUnit Price$1.24464
Ext.Price$1.24464
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.24464 | $1.24464 |
| 10 | $1.02077 | $10.20770 |
| 25 | $0.92839 | $23.20975 |
| 50 | $0.84437 | $42.21850 |
| 100 | $0.76795 | $76.79500 |
| 300 | $0.73605 | $220.81500 |
| 500 | $0.70548 | $352.74000 |
| 1000 | $0.67725 | $677.25000 |
